It consists of electrical wire. The diagram below is intended as a reference for the dimensions that will influence the detection characteristics.

Gas Leakage Detector Using Arduino Lpg Alarm Techatronic

Cutting pavement and concrete to install detection loops.

. A smoke or heat detector can be installed to the existing or new home wiring. Run the wire around the loop the given number of times or turns. Presence loop detectors x x w b splice point x - disconnect if tests 1 2 3 fail earth 3 2 to detector section a-a conduit loop detector wire section c-c s 4 in concrete typical earth.

4 The wire must be twisted together a minimum of 6. Driveway Gate Information for Contractors and Consumer. SAW CUT EXISTING SURFACE Cut 1 deep into the existing surface.

Each turn of wire should be placed above the previous one so as to form a vertical line. The length of the loop will be determined by the width of the roadway to be monitored. Slave gate electrical diagram single phase 208 240 vac 10 electrical diagram three phase 208 240 vac 11 12.

In our basic wiring diagram a single or multiple heat and smoke detectors are installed in the home by connecting. Check wiring to detector. Driveway gate exit and safety-reversing loop installation diagram.

Wiring schematic for electric gate installation. This drawing is for gate operators with digital keypads and timed entrance loop. Loop wire shorted or disconnected Check loop resistance on pins 7 and 8 it should be less than 5 ohms.

Each turn of wire must lay flat on top of the previous turn. The loop should reach to within 300rnmof each edge of the roadway. The vertical stacking of the loop.

This signal is sent to a remotely. Then ty-wrap the loop to the top of the PVC frame. Loop diagram will detail the connections of pneumatics and wiring from the field device through any junction boxes or marshalling cabinet to the controller or computer interface which.

Detector may detect the gate. Loop detector wiring diagram 38 loop detector operating instructions 38-1. Verify voltage used matches voltage marked on unit.

TYPE R3S LOOP ARRAY WIRING DIAGRAM 401 - 600 4 5 6 0 - 400 601 OF TURNS NUMBER CABINET TO LOOP FT WIRE LENGTH LOOP TURNS TABLE TYPE R1 AND R1W 5. Wrap the wire in the loop saw slot until the desired number of turns is reached. Gas detectors transmitters offer 4-20mA outputs where 4 mA equates to a zero reading and 20 mA equates a full scale reading of the calibrated range.

An inductive loop is basically a metal detector installed in the surface of the roadway. Inductive-loop detectors are installed in asphalt or portland cement concrete pavements using the process illustrated in Figures 5-2 through 5-7 and described by the steps. This stabilizes the loop during the pour and separates it from the rebar.

In general loops having a. VEHICLE LOOP DETECTOR USERS GUIDE NO9001-0110 Install Detector Wiring Diagram The loop detectors must only be placed in dry rooms or control cabinets that are protected against. Learn how to correctly install vehicle detector loops.

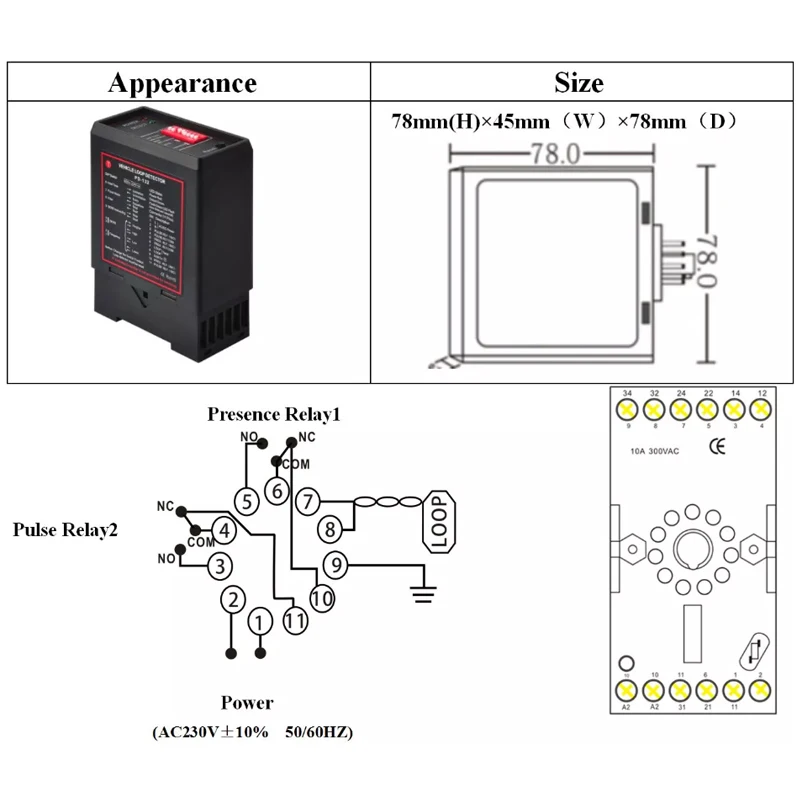

The wire from the detector to the loop around the loop for 3. Wiring Diagram 3 4 1 2 POWER INPUT 9 LD200 220VAC LD201 110VAC LD202 12-24VACDC EARTH LOOP1 TWISTED 10 7. Paved road loops must be installed by cutting a square or rectangular slot.
